Maximo Link Product Summary

The Maximo Link creates a connection between Drawbase and the Maximo line of applications, which include SQLBase, SQL Server and Oracle, allowing the user to input and query information from Maximo  while using Drawbase.

By using the Maximo Link, you can easily relate Maximo's database information to the Drawbase CAD graphics.

Key Functions

Maximo Security Check:

Maximo Link will check to see if you have sufficient security rights to add Work Orders, Equipment, and Locations to Maximo

Login In To Securely Work With MaximoLink!

Run Maximo:

Run Maximo from Drawbase.

Add/Update Equipment or Rooms:

Add object(s) and room(s) to Maximo as equipment and location(s) by selecting individual objects in Drawbase or by selecting all objects from a specific form

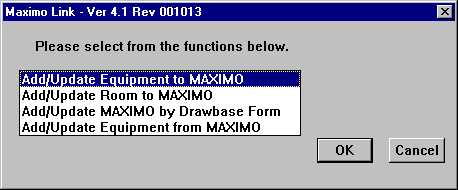

Keep Your Databases Up-To-Date Automatically!

Use Existing Drawbase data to populate your Maximo databases to save you time and money.

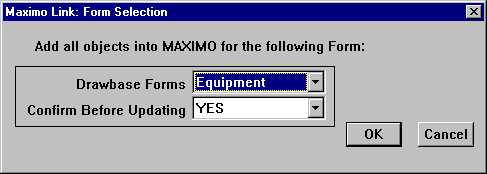

Update Your Maximo Data From Existing Graphics!

Add all of the new data for equipment to Maximo from Drawbase, even warranty information.

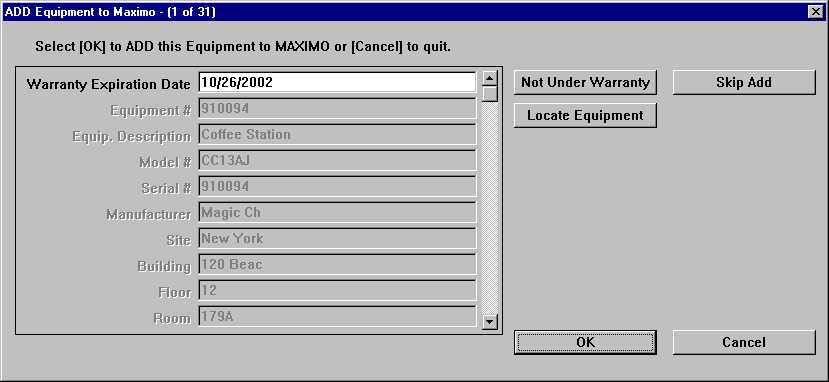

Add All Pertinent Information For The Object!

Populate your Locations as well.

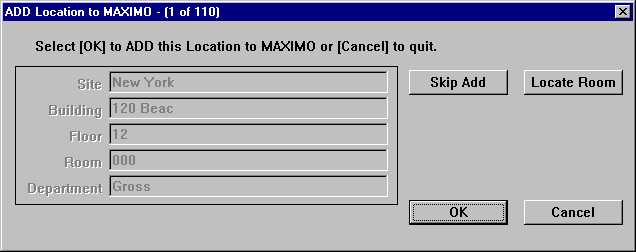

Add Locations From The Graphics!

Add Work Order:

Add a Work Order in Maximo by selecting  object(s) or room(s) in Drawbase. This function also has the ability to optionally attach a Drawbase drawing as a location bitmap of the area relating to the Work Order.

Send a Work Order to a Queue for further review and approval. Queued Work Orders can then be edited, deleted, or processed.

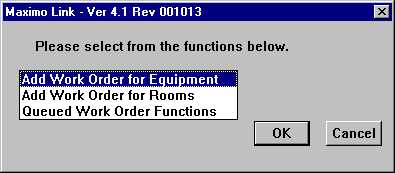

Select The Work Order Type!

Select a piece of Equipment or Location for the Work Order

Find The Locations On The Graphics!

MaximoLink will notify you if something is under Warranty!

See Warranty Information Automatically!

Fill in all the Work Order information.

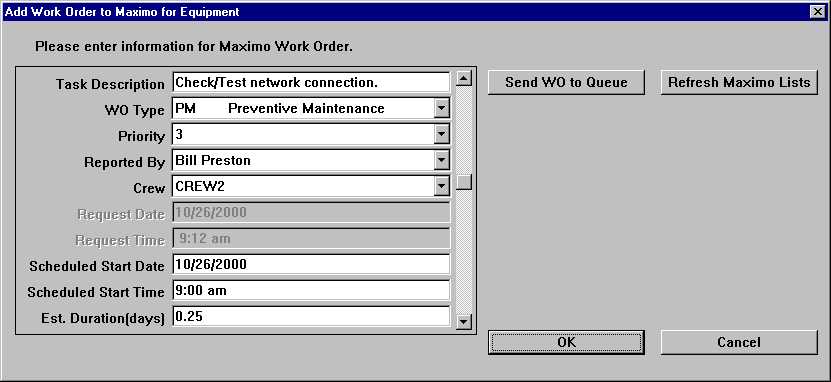

Fill In The Work Order From Drawbase!


Work Order numbers are taken directly from the next work order number in Maximo.  Drop down lists are extracted from Maximo for Work Order Type, Priority, and Reported By.

Search functions can be applied by using any form attribute to uniquely identify and locate a specific piece of equipment or room.

Retrieve Work Order History:

Select an object or room in Drawbase and retrieve a history of the Work Orders pertaining to the selected object or room.  Additionally, this function allows the user to list all equipment/locations for a specific Work Order.  Spare parts can also be queried upon for a selected piece of equipment.

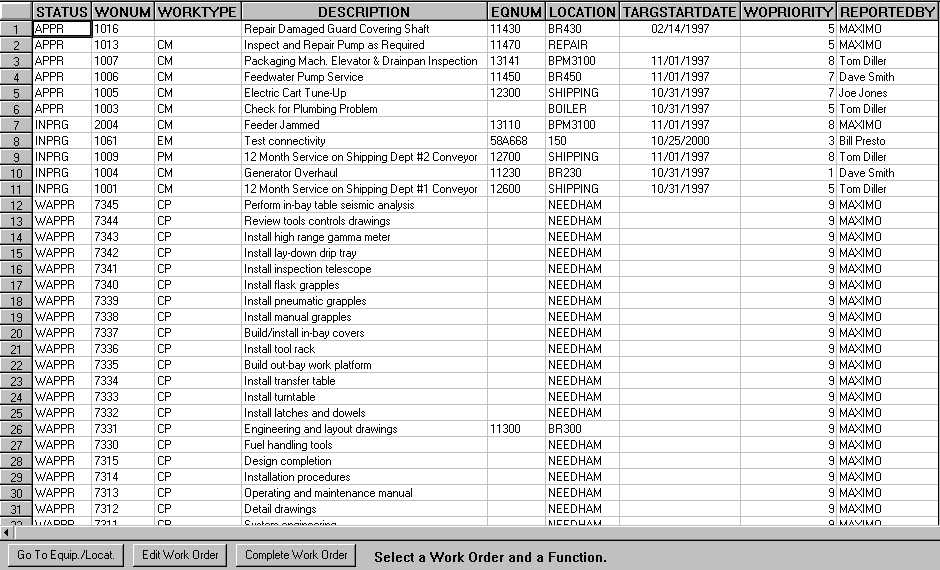

See All Work Order History For An Object!

Retrieve Last Work Order History:

This function retrieves the Work Order History of the last object selected with the Retrieve Work Order History function.

Get Work Order:

Select a Work Order and allow Drawbase to locate the equipment and/or location(s) associated with the Work Order.  Spare parts queries can also be applied as described above.

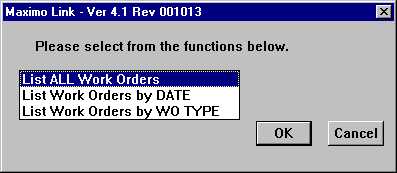

Review All Your Work Orders!


Maximo/Drawbase Fields

C    Site
C    Building
C    Floor
C    Room
C    Department


Additional Equipment Fields*:
C    Equipment No.
C    Description
C    Serial No.
Model No.
C    Manufacturer

Drawbase User Definable Equipment Form!

WO Fields* Extracted from Maximo:
C    Work Order No.
Work Order Type**
C    Priority**

Additional Work Order Fields*:
C    Task Description
C    Request Date
C    Scheduled Start Date
*   Fields can be customized by the user.
**  Field contains a drop down list.
